1. Product Profile
YD5050 portable spectro-densitometer is a high-end precise instrument for the measurement of printing optical density and colors, which is designed to be applied in industries like printing, packaging and ink, film process, etc.
2. Detailed Technical Parameter / Specification Form
| Functionality | YD5010 | YD5050 |
| Density Index | CMYK,Spot Colors | CMYK and Spot | CMYK and Spot |
| Density State | T,E,A,I | T,E,A,I |
| Density Trend | √ | √ |
| Densitometry | √ | √ |
| CMY Balance | √ | √ |
| Dot Area | √ | √ |
| Dot Gain | √ | √ |
| Overprint | √ | √ |
| Printing Characteristics | √ | √ |
| Printing Contrast | √ | √ |
| Tone Errors and Gray Patch | √ | √ |
| Printing Plate | √ | √ |
| Chromaticity index | L*a*b*,L*C*h° | √ | √ |
| dE*76,dE*94,dE*00,dECMC | √ | √ |
| A,C,D50,D55,D65,D75,F2,F7,F11,F12 | √ | √ |
| XYZ,Yxy | √ | √ |
| Special | Reflection Graph | √ | √ |
| Paper Indices | | √ |
| Opacity | | √ |
| de Trend | | √ |
| Metamerism | | √ |
| Absolute Color Strength | | √ |
| Relative Color Strength | | √ |
| Best Match | | |
| QC Function | Paper QC | | |
| Best Match Table | | |
| Ink QC | | |
| TVI Table | | |
| Gray Balance QC | | |
| | G7,PSO,ISO,JapaColor | | |
| Custom Work Template | | |
| Color Library | Pantone PMS+ | | |
| PantoneLIVE | | |
| Custom color library | | |
| Security | Security Settings | | |
| Multiple User Profiles | | |
| Other | Scan Mode | | |
| Spectral Data Derivation | | √ |
| Pass or Failure | √ | √ |
| Averaging | | √ |
| Sample Storage | | |
| Standard | | |
| Interface | USB | √ | √ |
| Bluetooth | | √ |
| Software | | √ | √ |
3. Detailed Introduction to Instrument

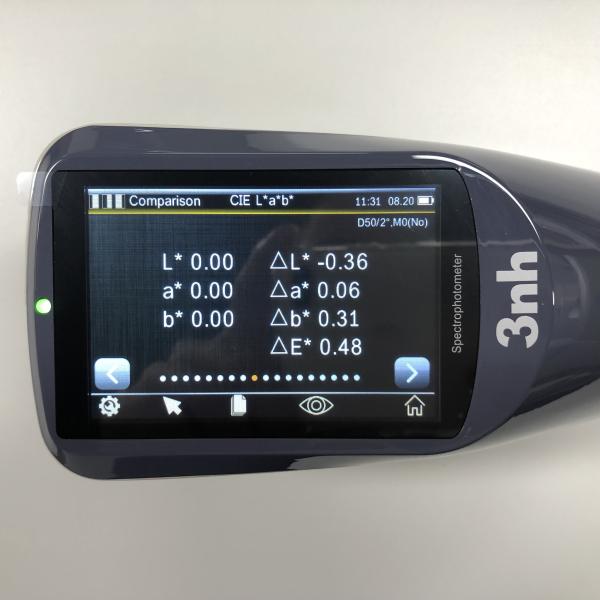

3.1. High configuration of hardware: 3.5 inches TFT capacitance screen-touch display, showing more comprehensive density and colorimetric indexes in one screen, making your operation more convenient and freer, checking the information you want very soon.
3.2. Dual Array 256 Image Element CMOS detector, making it have a high resolution and more sensitive to density and colors.
3.3. Long life-span stable LED & UV LED lamps which can generate different kinds of light sources and color temperatures more accurately. LED lamps are famous for their durablility which makes the instrument more stable and durable.
3.4. UV light source, can measure fluorescent colors more accurately.
3.5. Pass/Fail test result indication, help you to decide whether the color of the sample meets the requirements very promptly.
3.6. Color Offset/Deviation Direction indication between the standards and the samples which is definitely helpful for you to figure out the wanted color formulation.
3.7. All the parameters about printing: CMYK, Density, Dot Area, Dot Gain, etc. One instrument meets all requirements.
3.8. Optics 45°/0 Geometry, the optical geometry which are widely adopted in color measuring instruments. Reflective 45°/0 Geometry is for measuring colors of non-transparent targets.
3.9. Customizable measuring apertures: ∅2mm or ∅4mm or ∅8mm, different choice according to different application situations.
3.10. All kinds of Color Spaces, Color Difference Formulas and Colorimetric Indexes, meet all the requirements for color measurement and color analysis.
3.11. Include all kinds of light source types, can be applied to all the color measurement situations.
3.12. Two color measurement modes: Quality Mode and Average Mode, meet more color management situations.
3.13. Powerful data management functions, you can search and check records, rename and delete records, input standards.
3.14. Configured with a PC terminal software SQCX, more extended powerful functions for color data management can definitely facilitate your color management work.
3.15. USB and Bluetooth4.0, implement data transmission more convenient and prompt.
4. Company Profile
YD5050 was developed and manufactured independently by Shenzhen 3nh/ThreeNH Technology Co., LTD. which is a national high-tech company who has been specializing in researching and developing, manufacturing and marketing surface color measuring instruments and equipment, gloss measurement meters and also color matching light cabinets for over 22 years, since founded in 1998. We warmly welcome customers, partners and friends to visit our company and factory in Shenzhen, China.
5. Frequently Asked Questions
1. Can the YD5050 spectro-densitometer be equivalent to any model of world famous brands?
Answer: Yes, our YD5050 is equivalent to the eXact Spectro-densitometer of X-rite.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market?
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
