45/0 CMYK CIE lab YD5050 Opacity color spectrophotometer densitometer for printing to replace X-Rite eXact Advanced
3nh launched new model YD5010 Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; and it is able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
Product Features
1. 45/0 geometrical optics structure, comply with CIE, the testing conditions of M O, M 1,M 2 , M 3 stipulated by ISO 13655 standard, it can accurately measure various printing density , overprint rate and other printing parameters.
2. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample;

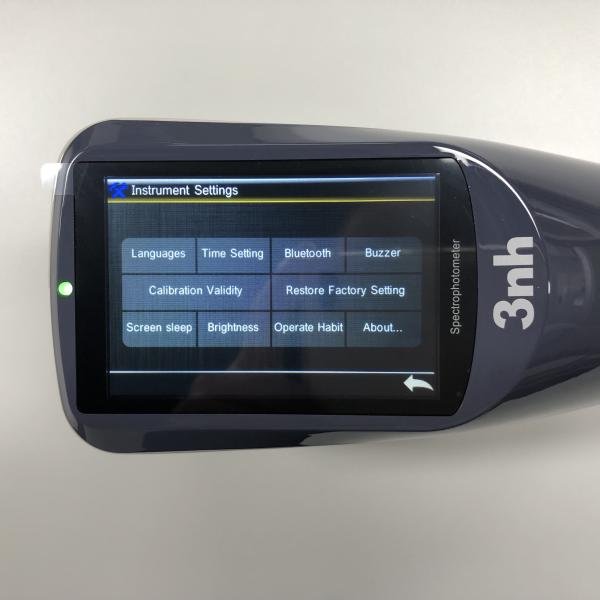

3. High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.；
4. Perfect combination of the beautiful appearance and the ergonomic structure design;
5. Switchable apertures: Φ2/4/8/20mm, adapt to more samples;
6. Large-capacity storage space, over 20,000 test data
7. Combined LED light sources with long life and low power consumption, including UV light;
8. USB/Blue2.1 dual communication mode is widely useful;
9. Especially suitable for process control and quality control of printing plants;
10. PC software has powerful function expansion.
| | Functionality | YD5010 | YD5050 |
| Density Index | CMYK,Spot Colors | CMYK and Spot | CMYK and Spot |
| Density State | T,E,A,I | T,E,A,I |
| Density Trend | √ | √ |
| Densitometry | √ | √ |
| CMY Balance | √ | √ |
| Dot Area | √ | √ |
| Dot Gain | √ | √ |
| Overprint | √ | √ |
| Printing Characteristics | √ | √ |
| Printing Contrast | √ | √ |
| Tone Errors and Gray Patch | √ | √ |
| Printing Plate | √ | √ |
| Chromaticity index | L*a*b*,L*C*h° | √ | √ |
| dE*76,dE*94,dE*00,dECMC | √ | √ |
| A,C,D50,D55,D65,D75,F2,F7,F11,F12 | √ | √ |
| XYZ,Yxy | √ | √ |
| Special | Reflection Graph | √ | √ |
| Paper Indices | | √ |
| Opacity | | √ |
| de Trend | | √ |
| Metamerism | | √ |
| Absolute Color Strength | | √ |
| Relative Color Strength | | √ |
| Best Match | | |
| QC Function | Paper QC | | |
| Best Match Table | | |
| Ink QC | | |
| TVI Table | | |
| Gray Balance QC | | |
| | G7,PSO,ISO,JapaColor | | |
| Custom Work Template | | |
| Color Library | Pantone PMS+ | | |
| PantoneLIVE | | |
| Custom color library | | |
| Security | Security Settings | | |
| Multiple User Profiles | | |
| Other | Scan Mode | | |
| Spectral Data Derivation | | √ |
| Pass or Failure | √ | √ |
| Averaging | | √ |
| Sample Storage | | |
| Standard | | |
| Interface | USB | √ | √ |
| Bluetooth | | √ |
| Software | | √ | √ |
