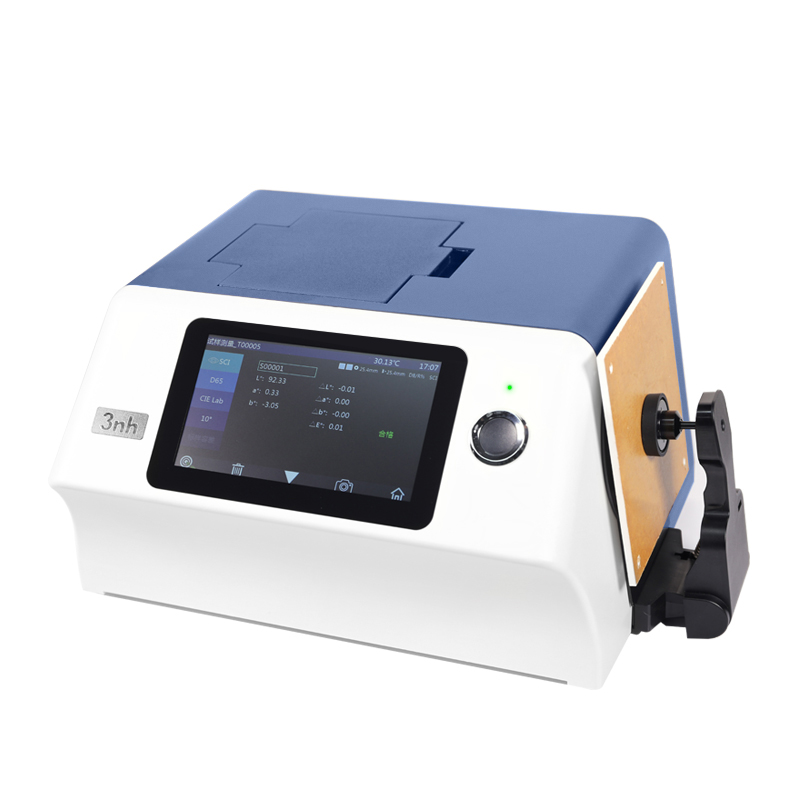

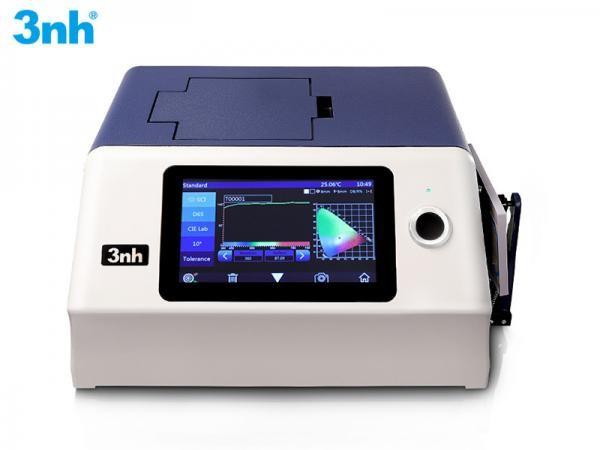

| Model | YS6020(Pulsed xenon lamp) | | Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle);
SCI (specular component included)/SCE (specular component excluded); Include UV / excluded UV light source;
Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing);
SCI (specular component included)/SCE (specular component excluded); Include UV / excluded UV light source;
Haze(ASTM D1003);
Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7 | | Integrating Sphere Size | Φ 154mm | | Light Source Device | 360nm-780nm Xenon Lamp, 400nm cut-off Xenon Lamp | | Spectrophotometric Mode | Concave Grating | | Sensor | 256 Image Element Double Array CMOS Image Sensor | | Wavelength Range | 360-780nm | | Wavelength Pitch | 10nm | | Semiband Width | 5nm | | Reflectance Range | 0~200% | | Measuring Aperture | Reflective: Φ30mm/Φ25.4mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
Transmissive: Φ30mm/Φ25.4mm; Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position | | Specular Component | Reflectance: SCI&SCE
Transmittance: SCI&SCE | | Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, Munsell, s-RGB, HunterLab, DIN, βxy | | Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter), DIN ΔE99 | | Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
TI (ASTM E313, CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,
Gardner Index, Pt-Co Index, 555 Index, Haze(ASTM D1003) | | Observer Angle | 2° & 10° | | Illuminants | D65, A, C, UV, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 | | Displayed Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset | | Measuring Time | About 2.4s (Measure SCI & SCE about 5s) | | Repeatability | Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.07% (400 nm to 700 nm: within 0.06%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.07% (400 nm to 700 nm: within 0.07%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.018 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | | Inter-instrument Error | Φ25.4mm/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles) | | Size | 370×300×200mm | | Weight | About 9.6kg | | Power Supply | DC 24V, 3A Power Adapter | | Light Source Device Life | 5 years, more than 3 million times measurements. | | Display | 7" TFT Capacitive Screen-touch Display | | Data Port | USB & Print serial port | | Data Storage | Standard 2000 Pcs, Sample 20000 Pcs | | Language | Simplified Chinese, Traditional Chinese, English, | | Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation) | | Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) | | Standard Accessory | Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 8 caliber, 4 caliber, | | Optional Accessory | Micro-printer, Transmissive Test Clamp Component,Micro Aperture(4mm) transmission test clamp component, Instrument inversion components | | Notes: The specifications are subject to change without notice. | |
