Concave Grating Cm2300d Minolta Spectrophotometer 3nh Ys3060

Shenzhen ThreeNH Technology Co., Ltd.
Contact Now

Concave Grating Cm2300d Minolta Spectrophotometer 3nh Ys3060

  • 1
  • 2

Brand Name : 3nh

Model Number : YS3060

Certification : CE, TUV, FCC, RoHS, ISO9001

Place of Origin : Shenzhen China

MOQ : 1Unit

Price : Please send inquiry

Payment Terms : T/T

Supply Ability : 500 Units per Month

Delivery Time : 2-5 Days

Packaging Details : 46*25*38cm, 4.5KG, Alluminum Box

Optical Geometry : d/8°

SCE/SCI : SCE & SCI

UV Light Source : Yes

Repeatibility : ΔE*≤0.03

Inter-instrument Agreement : ΔE*≤0.15

Measuring Aperture : 8mm & 4mm

Contact Now

cm2300d minolta spectrophotometer replaced by 3nh ys3060 colorimeter for coated color glass

Product Description
Model YS3060
Illumination/ observation system reflect: di:8°. de:8° ( diffused illuminatiom, 8-degree viewing angle); UV included/ UV excluded
Integrating sphere size 48mm
Light source Combined LED sources, UV souuces
Spectral Mode Concave-grating
Sensor 256 Image element double arrays CMOS image sensor
Wavelength range 400~700nm
Wavelength interval 10nm
Reflectance range 0~200%
Half banwidth 10nm
Measuring aperture 8mm & 4mm
Color space CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLAB
Color difference formila ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*cmc(l:c), ΔE(Hunter), WI(ASTM E313, CIE/ISO, AATCC, Hunter)
Other chrometric data

WI(ASTM E313, CIE/ISO, AATCC, Hunter),

YI(ASTM D1925, ASTM 313),

MI, strength, stainning fastness, cover ratio, 8° gloss value
Observer 2°/10°
Illuminant D65, D50, A, C, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12,CWF, U30, TL83, TL84, U35
Display data Spectral value/graph, colorimetric value, color difference value/graph, pass/fail result, color simulation, color index setting (ΔE*94, ΔE*cmc, ΔE2000), tolerance prompt, reverse prompt, time setting, language setting, restore factory setting
Measurement time Approx 1s ( approx 2.6s in SCI & SCE
Repeatability

Spectral reflentance: MAV/SCI, standard deviation within 0.08%(400~700nm: within 0.18%)

Colorimetric value: standard deviation within ΔE*ab 0.03(measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)

Errors between each instrument within ΔE*ab 15.2 (MAV/SCI) (average for 12 BCRA series II color tiles)
Measurement mode Single measurement, average measurement (2~99 times)
Locate mode Camere locating
Dimension L*W*H=184**77*1050mm
Weigh 600g
Battery Li-ion battery, 5000 times within 8 hours
Lamp life 5 years, more than 1.6 million measurements
Display screen TFT 3.5 inch, capacitive touch screen
Interface USB/ RS-232, Bluetooth 4.0
Data memory 1000 standard, 15000 samples (SCI & SCE can be included in one data)
Languages Chinese & English
Operating temperature 0~40 (32~104°F)
Storage temperature -20~50℃(-4~122°F)
Standard accessory Power adaptor, li-ion battery, operating instruction, CD-ROM ( containing management software), white and black calibration cavity, dust cover
Optional accessory Universal test components, micro printer, power test box
Warranty 1 year
Notes The specifications are subject to change without notice.

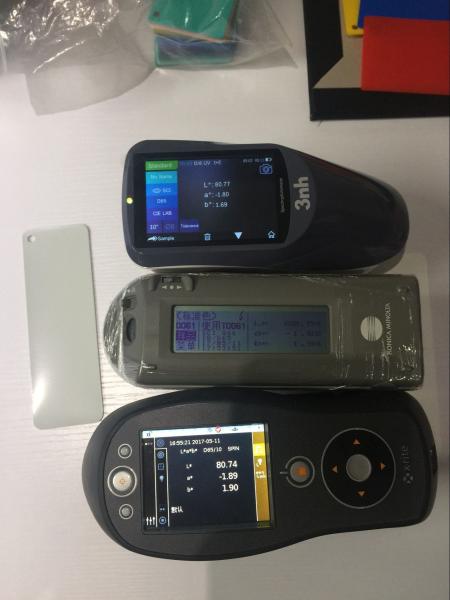

Detailed Images

Concave Grating Cm2300d Minolta Spectrophotometer 3nh Ys3060Concave Grating Cm2300d Minolta Spectrophotometer 3nh Ys3060

Concave Grating Cm2300d Minolta Spectrophotometer 3nh Ys3060

Concave Grating Cm2300d Minolta Spectrophotometer 3nh Ys3060

Concave Grating Cm2300d Minolta Spectrophotometer 3nh Ys3060

Application

YS3060 spectrophotometer is developed by 3nh with indepandent intellecual property rights. It features with stable performance, precise measurement and powerful functions in the leading position of the same industry. It can measure reflentande spectrum and other color index precisrly. NS 810 spectrophotometer can not only help to perform color matching management studies, but also control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.

It's used to compare color difference in plastic, electronic, painting, coating, ink, textile, garment, printing, dyeing, food, medical, cosmetic industries and institutes, schools and laboratories.

Concave Grating Cm2300d Minolta Spectrophotometer 3nh Ys3060

Packaging & Shipping

Size 405*209*319mm
Gross weight 2.95kg
Standard accessory Power adapter, li-ion battery, operating instruction, CD-ROM ( containing management software), data line, white and black calibration cavity and dust cover
Optional accessory Universal test components, micro printer, power test box
Package case, carton package.
Payment T/T, Western Union, Paypal
Lead Time 1-3 workdays
Shipping DHL, Fedex, UPS, EMS,TNT, etc

Concave Grating Cm2300d Minolta Spectrophotometer 3nh Ys3060

Company Information

Shenzhen ThreeNH Technology Co., Ltd / Shenzhen Tilo Technology Co., Ltd . was found in 1998, and we are specializes in the R&D, production and sales of colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc., which is the leading producer in the color and glossy surface measurement field in China. We are also the national high technology enterprise.Till now we have received more than 20 patents and passed CE, ISO 9001, ROHS, FCC, TUV etc certifications.

Concave Grating Cm2300d Minolta Spectrophotometer 3nh Ys3060

Concave Grating Cm2300d Minolta Spectrophotometer 3nh Ys3060

Certifications

3nh passed ISO 9001, CE, ROHS, FCC, TUV, SCM CERTIFICATES.

Concave Grating Cm2300d Minolta Spectrophotometer 3nh Ys3060

Customer Confirmnation:

Concave Grating Cm2300d Minolta Spectrophotometer 3nh Ys3060

Our Services

1.24 hours online to ensure quick response to customers' inquiry or online message;

2. Help customers to choose the best suitable machine model;

3. We support OEM and ODM service and 12 months warranty from the purchase date.

Concave Grating Cm2300d Minolta Spectrophotometer 3nh Ys3060
