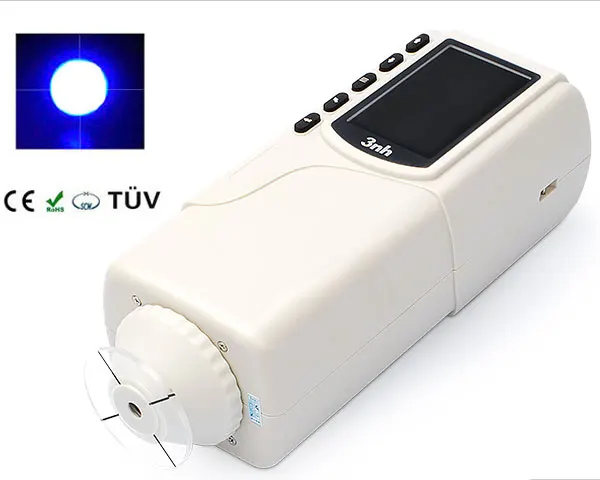

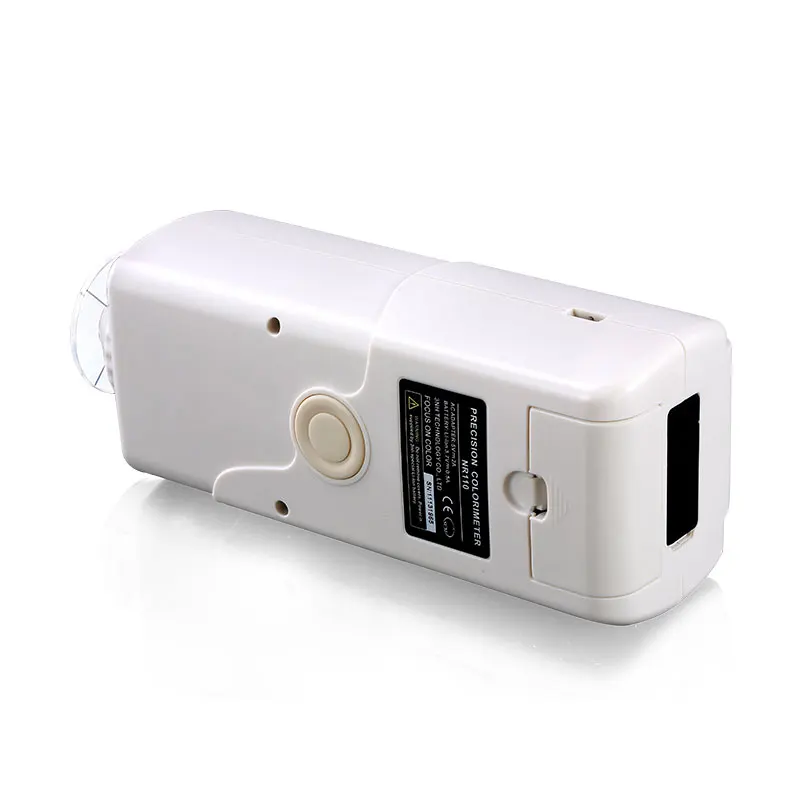

3NH NR110 Precision Colorimeter
Since 1998, from import to domestic, 3nh NR110 precision colorimeter is an iconic milestone in color test industry.
NR110 precision colorimeter features with 8/d structure that is very precise. This cheap colorimeter is spoken highly of by many customers, and the small size 4mm measurement aperture makes it popular used in many applications, such as fabrics, paper, plastic parts, building materials.
NR110 Precison Colorimeter Product Advantages
a. Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.
b. Double Locating: Illuminating locating and precise cross locating.
c. Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
d. New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path. Possessing the highest measurement stability and precision.
e. 4mm Measuring Aperture.
f. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
g. Configure CQCS3 software. Connect PC computer to realize more functions.
h. Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.
i. Hand-head structure: small and convenient; make the measurement easier.
j. Exquisite appearance: adopts traditional and fashionable aesthetic designs.
k. Spending huge sums on high-end mold. Product consistency approaches 100%.
l. High cost performance: large output, good quality, cheap products.
NR110 Precision Coloimeter Technical Specifications
| Illuminating/Viewing Geometry | 8/d |
| Measuring Aperture | Φ4mm |
| Detector | Silicon photoelectric diode |
| Locating | Illuminating Locating/Cross Locating |
| Measurement End Face | Large stable end-face and small concave-convex end-face |
| Color Space | CIEL*a*b*C*h* CIEL*a*b* CIEXYZ |
| Color Difference Formula | delta E*ab delta L*a*b* delta E*C*h* |
| Light Source | D65 |
| Light Source Device | LED blue light excitation |
| Errors Between Each Equipment | ≤0.80 delta E*ab |
| Storage | 100pcs standards 20000pcs samples |
| Repeatability | Standard deviation within delta E*ab 0.08 Average of 30 measurements of standard white plate |
| Language | English/Chinese |
| Weight | 450g |
| Dimension | 205×67×80 mm |
| Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Charging Time | 8 hours--100% electricity |
| PC Software | CQCS3 Software |
| Printer (optional) | Miniature thermal printer |
Applications:
3nh colorimeter spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic industries, scientific research institutes, schools and laboratories. It not only can help to perform color matching and color management studies, but also can control product quality management. 3nh colorimeter is equipped with high-end color management software that can connect to PC to achieve more extension functions.
Our Services
1.24 hours online to ensure quick response to customers' inquiry or online message;
2. Help customers to choose the best suitable machine model;
3. We support OEM and ODM service and 12 months warranty from the purchase date.
Company Information
Shenzhen ThreeNH Technology Co., Ltd / Shenzhen Tilo Technology Co., Ltd . was found in 1998, and we are specializes in the R&D, production and sales of colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc., which is the leading producer in the color and glossy surface measurement field in China. We are also the national high technology enterprise.Till now we have received more than 20 patents and passed CE, ISO 9001, ROHS, FCC, TUV etc certifications.
FAQ
1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 22 years. We research and develop, design and produce, market and sell color measuring instruments and gloss meters, color light box etc.
3. What's your main market?
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
