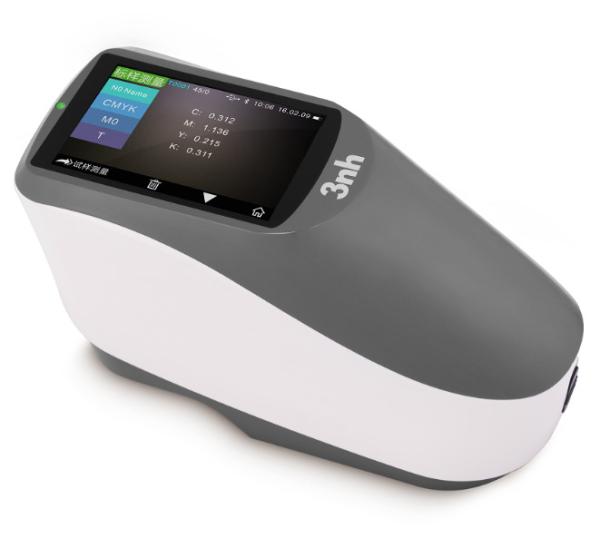

3nh YD5010 45/0 Colour Measurement Spectrophotometer CMYK Density CIE Lab Delte E XYZ

Shenzhen ThreeNH Technology Co., Ltd.
Contact Now

3nh YD5010 45/0 Colour Measurement Spectrophotometer CMYK Density CIE Lab Delte E XYZ

  • 1
  • 2

Brand Name : 3nh

Model Number : YD5010

Certification : CE, TUV, FCC, RoHS, ISO9001

Place of Origin : Shenzhen China

MOQ : 1Unit

Price : Please send inquiry

Payment Terms : T/T

Supply Ability : 500 Units per Month

Delivery Time : 2-5 Days

Packaging Details : 46*25*38cm, 4.5KG, Alluminum Box

Optical Geometry : 45/0(45 ring-shaped illumination, vertical viewing)

Light source : Combined LED Light, UV Light

Other Colorimetric Index : WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity,

Repeatibility : ΔE*≤0.04

Color Space : CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB

Measuring Aperture : 8mm and 4mm Apertures

Contact Now

Product Features

1.Perfect combination of the beautiful appearance and the ergonomic structure design;

2.Combined LED light sources with long life and low power consumption, including UV light;

3.Switchable apertures: Φ2/4/8/20mm, adapt to more samples;

4. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample;

5.High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.;

6.Two standard observer angles: 2/10, multiple light source modes and color systems;

7.USB mode is widely useful;

8.Large-capacity storage space, over 10,000 test data;

9.Especially suitable for process control and quality control of printing plants;

10. PC software has powerful function expansion.

Packing List

1 x Spectrodensitometer YD5010
1 x Li-Ion battery (installed)
1 x White and Black Calibration Board
1 x Power Adapter
1 x USB cable
1 x Protective Cover
1 x Polarization filter box,

1 x Locating Plate

1 x Software download from the website
1 x Aluminum carry case

Specification

Grating Spectrodensitometer
Model YD5010 YD5050
Measurement Geometry 45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15 45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15
Features Common spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm. high accuracy spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
Light Source Combined LED Light, UV Light Combined LED Light, UV Light
Spectral separation device Concave Grating Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm 400~700nm
Wavelength Pitch 10nm 10nm
Half Bandwidth 10nm 10nm
Measurement Conditions Compliance with ISO 13655 measurement conditions;
M0 (CIE Light Soure A)
M1 (CIE Light Soure D50)
M2 (Excluding UV light source)
M3 (M2+Polarized light filter)
Compliance with ISO 13655 measurement conditions;
M0 (CIE Light Soure A)
M1 (CIE Light Soure D50)
M2 (Excluding UV light source)
M3 (M2+Polarized light filter)
Density Standards ISO Status A, E, I, T ISO Status A, E, I, T
Density index Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray level Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray scale, density scanning
Measurement aperture Customized one aperture:Φ2mm,Φ4mm,Φ8mm optional Customized one aperture:Φ2mm,Φ4mm,Φ8mm optional
Color Spaces CIE LAB,XYZ,Yxy,LCh CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Color Difference Formula ΔE*ab,ΔE*94,ΔE*00 ΔE*ab,ΔE*94,ΔE*00,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE(Hunter)
Other Colorimetric Index / WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
MI (Metamerism Index),Opacity,
Observer Angle 2°/10° 2°/10°
Illuminants A,C,D50,D55,D65,D75,F2,F7,F11,F12 A,C,D50,D55,D65,D75,F2(CWF),F7(DLP),F11(TL84),F12(TL83/U30),F1,F3,F4,F5,F6,F8,F9,F10(TPL5)
Measurement Time About 1.5s About 1.5s
Repeatability Density: Within 0.01 D Density: Within 0.01 D
Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Except M3 Chromaticity value:within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Except M3
Inter-instrument Error Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3 Within ΔE*ab 0.18 (Average for 12 BCRA Series II color tiles) Except M3
Measurement mode Single Measurement, Average Measurement(2-99) Single Measurement, Average Measurement(2-99)
Size(L*W*H) 184*77*105mm 184*77*105mm
Weight About 600g About 600g
Power source Li-ion battery. 5000 measurements within 8 hours Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB, USB, Bluetooth 4.0
Data memory 10000 pcs 20000 pcs
Language
Simplified Chinese, English, Traditional Chinese

Simplified Chinese, English, Traditional Chinese
Working Environment Temperature:0~40℃;Humidity: 0~85% (No Condensation);altitude:less than 2000 m Temperature:0~40℃;Humidity:0~85% (No Condensation);altitude: less than 2000 m
Storage Environment Temperature: -20~50℃;Humidity: 0~85% (No Condensation) Temperature: -20~50℃;Humidity: 0~85% (No Condensation)
Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover,Polarization filter box,Locating Plate Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover,Polarization filter box,Locating Plate
Optional Accessory Micro Printer Micro Printer
Notes: The specifications are subject to change without notice.

Applications

3NH-YD5010 portable spectrodensitometer, widely used in ink printing, film processing, textile printing and dyeing, plastic electronics and other industries color measurement and quality control, especially suitable for measurement and quality control of optical density, dot gain and other indicators in ink printing.


Delivery Time
1-2 working days after payment received.
Warranty
We warrant to you that any Product purchased from us will, on delivery and for the following 1 - 2 years (depending on the Product purchased), conform in all material respects with its description, be of satisfactory quality, and be reasonably fit for all the purposes for which products of that kind are commonly supplied.

Functionality YD5010 YD5050
Density Index CMYK,Spot Colors CMYK and Spot CMYK and Spot
Density State T,E,A,I T,E,A,I
Density Trend
Densitometry
CMY Balance
Dot Area
Dot Gain
Overprint
Printing Characteristics
Printing Contrast
Tone Errors and Gray Patch
Printing Plate
Chromaticity index L*a*b*,L*C*h°
dE*76,dE*94,dE*00,dECMC
A,C,D50,D55,D65,D75,F2,F7,F11,F12
XYZ,Yxy
Special Reflection Graph
Paper Indices
Opacity
de Trend
Metamerism
Absolute Color Strength
Relative Color Strength
Best Match
QC Function Paper QC
Best Match Table
Ink QC
TVI Table
Gray Balance QC
G7,PSO,ISO,JapaColor
Custom Work Template
Color Library Pantone PMS+
PantoneLIVE
Custom color library
Security Security Settings
Multiple User Profiles
Other Scan Mode
Spectral Data Derivation
Pass or Failure
Averaging
Sample Storage
Standard
Interface USB
Bluetooth
Software
