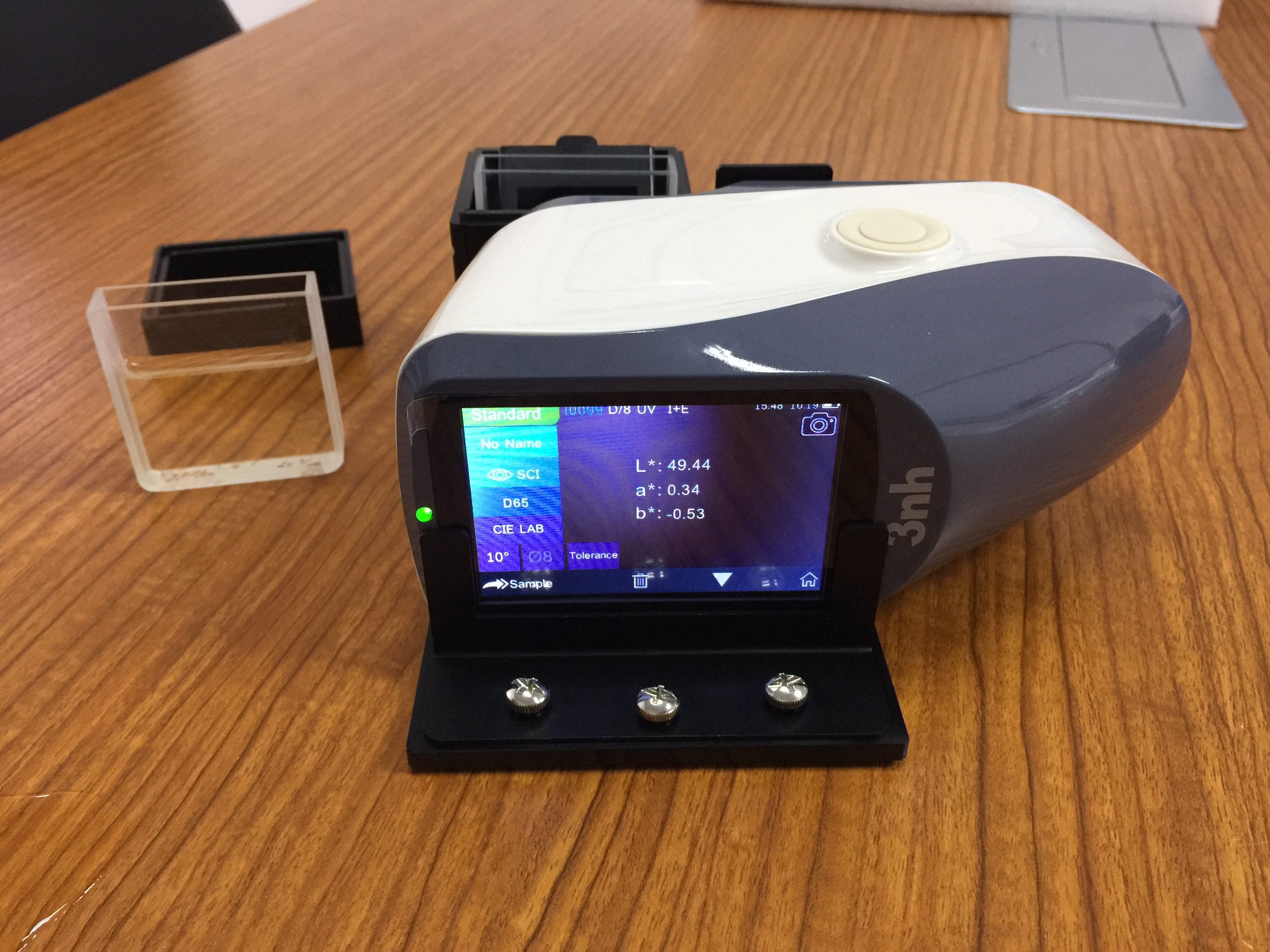

Liquid color comparator spectrophotometer 3nh YS3060 with SCE SCI for liquid powder paste color test
Features
A. Perfect combination of beautiful appearance and the human body mechanics structural design;
B. D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
C. Use long life and low power consumption combined LED light source, including UV/excluding UV;
D. Switchable Φ8/4mm aperture, adapt to more samples; support both SCI and SCE at the same time;
E. Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;
F. High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;
G. USB/Bluetooth 2.1, dual mode, widely useful;
H. Super stain-resistant and stable standard white calibration plate;
I. Large capacity storage space, over 20,000 measurement data;
J. Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;
K. Camera Locating Function, better position;
l. PC software has a powerful function extension.
Technical Specification
| Model | YS3060 |
| Illumination/observation system | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) |
| Integrating sphere Size | Φ58mm |
| Light Source | Combined LED Light, UV Light |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength range | 400~700nm |
| Wavelength pitch | 10nm |
| Reflectance range | 0~200% |
| Measuring Aperture | Dual Aperture: 10mm/8mm & 5mm/4mm |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB |
| Color difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter) |
| Other Chromaticity Data | WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness |
| Observer | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 |
| Display Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measurement Time | 1.5s |
| Repeatability | Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.) |
| Inter Instrument Agreement | Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Dimension | L*W*H=184*77*105mm |
| Weight | 600g |
| Battery | Li-ion battery. 5000 times within 8 hours. |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Display Screen | TFT 3.5inch, Capacitive Touch Screen |
| Interface | USB/RS-232 |
| Data Memory | Standard 2000 Pcs, Sample 20000 Pcs |
| Operating Temperature | 0~40℃(32~104°F) |
| Storage temperature | -20~50℃(-4~122°F) |
| Standard Accessory | Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover |
| Optional Accessory | Micro Printer, Powder Test Box |
| Notes | The specifications are subject to change without notice. |
