Accurate Portable Spectrophotometer Colorimeter , Digital Photo Colorimeter Easy Operation

Shenzhen ThreeNH Technology Co., Ltd.
Contact Now

Accurate Portable Spectrophotometer Colorimeter , Digital Photo Colorimeter Easy Operation

  • 1
  • 2

Brand Name : 3nh

Model Number : NR60CP

Certification : CE,RoHs,ISO,etc

Place of Origin : Shenzhen, China

MOQ : 1pc

Payment Terms : T/T,Paypal

Supply Ability : 1000pcs/month

Delivery Time : 2 works days

Packaging Details : Standard Export Package

Model : NR60CP

Light Source : LED Light

Measuring Time : 0.4s

Measuring Aperture : 8mm flat aperture,4mm tip aperture

Color Space : CIE LAB,XYZ,LCH,CIE RGB, CIELUV

Dimension : 205*67*80mm

Illuminant : D65,A,C,D50,F2,F6,F7,F8,F10,F11,F12

Software : CQCS3

Contact Now

NR60CP Cheap Chroma Meter Similar to Konica Minolta CR-10 PLUS Colorimeter


Brief Introduction:

NR60CP colorimeter is high cost-effective precise colorimeter features with powerful functions and excellent innovation technology. Which is featured with : a. 8mm and 4mm double aperture for switch,easy to measure concave sample in large plane; b. more stable and accuracy, Delta E ab < 0.03; c. Many color spaces,many color indexes, extensive applicability; d. Double locating: illuminating locating and cross locating; e. Equippped with rechargeable high-capacity li-ion battery; f. Built-in white plate parameters, and configuration of physical whiteboard, easy to operate; g. New integrating sphere optical path design, more suitable to measure; h. Double apertures measurement data can pass SCM metrological certification.

NR60CP colorimeter is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It not only can precisely measure many kind of color indexes in many color spaces, but also it is easy to use with powerful functions. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.

Features:

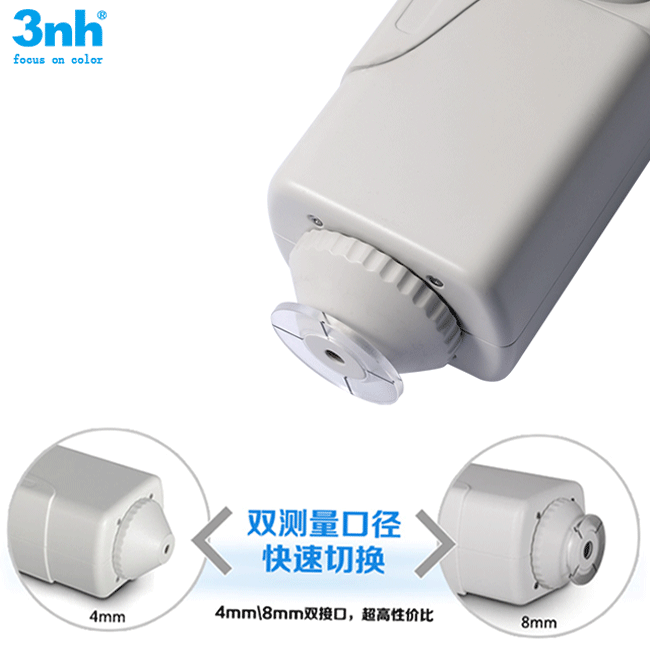

  • 8mm and 4mm double aperture for switch, easy to measure concave sample in large plane
  • More stable and accuracy, Delta E ab<0.03
  • Many color spaces, many color indexes, extensive applicability
  • Double locating: illuminating locating and cross locating
  • Equipped with rechargeable high-capacity li-ion battery
  • Built-in white plate parameters, and configuration of physical whiteboard, easy to operate;
  • New integrating sphere optical path design, more stable to measure;
  • Double apertures measurement data can pass SCM metrological certification;

Specifications:

Model NR60CP
Illuminating/Viewing Geometry 8° / d; CI E No. 15,GB/ T 3978
Light Source LED sources
Sensor Silicon photodiode array
Measuring Aperture Φ8mm large area end-face; Φ4mm small area concave-convex end-face
Color Space CI E L AB,XYZ,LCh,CI E RGB,CI E LUV
Other Chromaticity Data WI ( E313,CI E, AATCC,Hunt er ),YI ( D1925, 313),Color Fastness, Staining Fastness, J PC79,BFD( 1. 5: 1),FMCI I
Observer CI E 10°
Illuminant D65,A,C,D50,F2,F6,F7,F8,F10,F11,F12
Display Data Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset,
Measurement Time 0. 4s
Repeatability ΔE* ab 0. 03(Average of 30 measurement of standard white plate within 5s)
Errors between each instrument within Delta E*ab 0.2
Dimension (L*W*H)205*67*80mm
Weight 500g
Battery rechargeable lithium-ion battery 3. 7V @ 3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Display Screen TFT 2.8 inch(16: 9)
Interface USB/RS-232
Data Memory 100 Standards, 20000 Samples
Operating Temperature 0~40℃(32~104°F)
Storage temperature -20~50℃(-4~122°F)
Optional Accessory miniature thermal printer, powder test box
