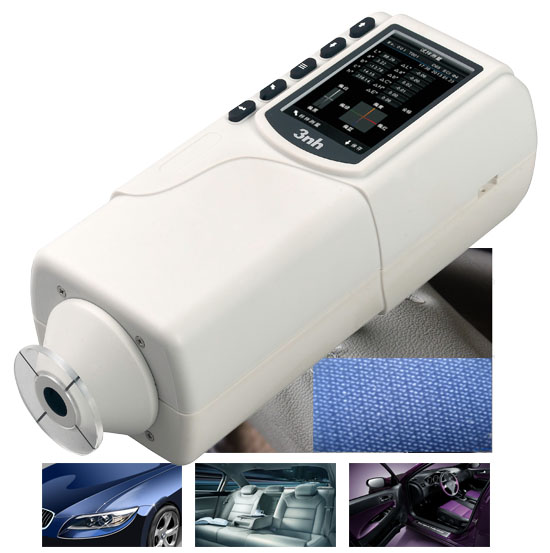

Plastic Portable 3nh Colorimeter Multiple Color Space With 8mm Aperture

45/0 Cheap 3nh portable plastic colorimeter / color tester machine NR145

NR145 colorimeter is a model of colorimeter with powerful functions, high accuracy and competitive price, which has integrated the advantages of the similar products of the famous international brands. It also goes with our own innovative technology and patents, like illumination locating and cross locating, built-in white plate parameters.

It is configured with multiple color space systems and color difference formulas, all of which have endowed NR145 with powerful functions to meet the requests of all kinds of color measurements.

Its friendly interface makes operation very simple. And once connected with PC via the software CQCS3 whose complete independent intellectual property right is owned by 3nh, more powerful extension functions will be at hand, like color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management and simulating object color, etc.

Features:

Name&Model : Colorimeter NR145

Illuminating/Viewing Geometry : 45°/0

Observer : CIE 10° Standard Observer

Measuring Aperture : Φ8mm

Repetitive Error: Standard Deviation within ΔE*ab=0.08
(Calculating Method: Average value of the results of 30 measurements of the standard white plate)

Inter-Instrument Error: Within ΔE*ab=0.5

Color Space: CIE L*a*b*C*H*, CIE L*a*b*, CIE XYZ

Color Difference Formula: ΔE*ab, ΔL*a*b*, ΔE*C*h

Measurement Time: 1.5s

Light Source Type: D65

Light Source Device: LED Blue Light Excitation

Light Source Life: 5 years, more than 1.6 million measurements

Sensor: Silicon Photoelectric Diode Array

Data Storage : 100 Standards, 20000 Samples

Data Port : USB

Standard Accessory : AC Adapter, Operation Manual, Software CD, USB Cable, White Calibration Cover

Optional Accessory: Mini-printer, Powder Test Box
